50 Lbs Water Purification Commercial Seawater System For Optimal Performance

Commercial Seawater System

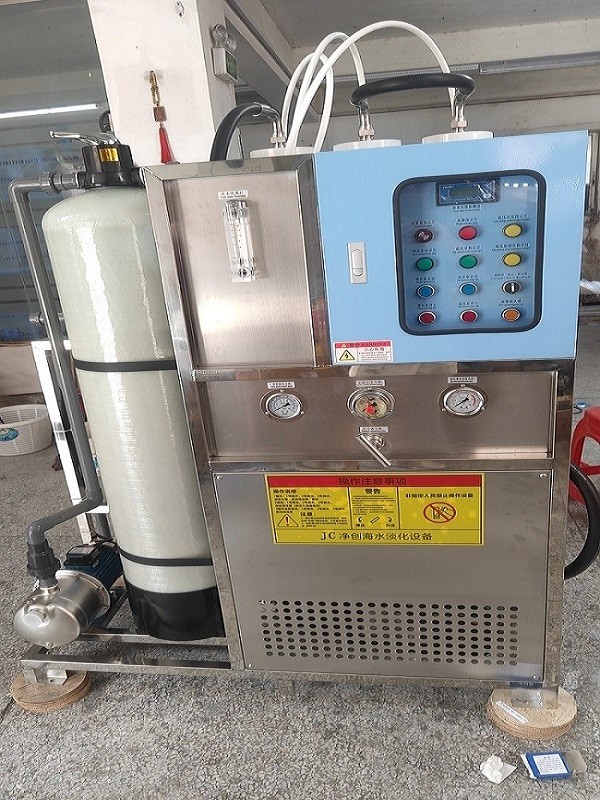

10T Seawater Desalination Machine Parameters Hello!

Below is our company's total quotation

10T/D Seawater Desalination Machine and Equipment Models: If you have any questions, please contact us by phone. Equipment Name Model Water Production Capacity Main Unit Power 220V60Hz RMB Seawater Desalination Machine Price

JC-10T 10T/D 4KW
RMB: 48,000 FOB price
Notes: Inlet water salinity ≤ 40,000 ppm; outlet water meets GB5749-06 Class I standards.
Main equipment configuration as follows:
II. Name Specifications and Model Unit Quantity Origin Notes
Raw water pump 1000W set
1 Guangdong stainless steel
Sand filter 300x1500 set
1 Guangdong Glass-Fibre Reinforced Plastic Fine Filter Housing 20‘—1 unit 2 China Filter Element 20’—5μ 1 unit Dongguan Fibre Filter Element 20"—3μ 1 unit
Dongguan Fibre Motor 3000W Set
1 unit China MD High-Pressure Pump P316 Set
1 Imported 30 L/min 140 bar; V-belt A-40" Pcs 2 Pulley D150 Pcs 1 Pulley D140 Pcs
1 Reverse osmosis membrane 40 Pcs 3 Huitong reverse osmosis membrane housing 4" * 3 sections Pcs 3 Glass fibre reinforced plastic material;
Pressure regulating valve DN25 Pcs
1 Stainless steel safety valve Panel-mounted pressure gauge 10 MPa; YX60 piece
1 Oil-resistant, shock-resistant; Precision 2.0 Panel-mounted pressure gauge 0.6 MPa; YX60 piece
1 Oil-resistant, shock-resistant; Precision 2.0 High-pressure electric contact pressure gauge 10 MPa piece
1 Oil-resistant, shock-resistant; With electric contacts
Flow Meter 5 GPM Pcs 2 Zhejiang Panel-Mounted
Conductivity Meter CM320 Pcs 2 Equipped with Sensor
Pressure Switch JY-2 Pcs
1 Chinese Marine Frame Rack 316SS Pcs 1 Stainless Steel 316
Electronic Control System Set
1 Zhengtai Pipeline System DN25 Set
1 PVC Pipe, 316 Stainless Steel High-Pressure Hose
Spare filter cartridges Pcs 100
This quotation includes: Packaging and transportation (Chinese port)
II. Technical Parameters Water production: 10 T/D (20°C) Inlet water salinity: ≤40,000 mg/L Inlet water temperature: 5~36°C Inlet water flow rate: 2 m³/h Inlet water pH range: 3.0~10.0 Inlet water pressure range: -0.1~1 kg/cm² Effluent Salinity: ≤700 mg/L
System Desalination Rate: ≥99.3% Effluent Water Quality: Complies with GB5749-06 ‘National Standard for Drinking Water Quality’ Effluent pH: 6.5~8.5 Effluent Pressure: >0.15 m

System recovery rate: ≈20–25% (depending on temperature and water quality)

Power supply: AC 220 V, 60 Hz/3-phase

Installed capacity: ≈4 kW (main unit)

Electrical control panel: Control

Voltage: 220 V

Maximum dimensions: Length × Width × Height = 1,300 × 900 × 1,650 Weight: ≈350 kg (net weight)

Note: Due to product specificity need to buy the pro please contact our customer service, customer service will be based on the pro's water consumption and water quality problems to recommend the right products to the pro, in order to avoid unnecessary future trouble please do not blindly buy equipment, such as the need for specific details of the specifications and parameters or picture trouble pro contact customer service, we will answer the pro's questions, thank you for the pro's support of the net environmental protection, thanks!
